傳感器安裝在探頭，保護
抗腐蝕
特點
● 成本效益高，精度高的熱敏電阻或 RTDs 可與或沒有接線盒
● 無需校準
● 不銹鋼探頭
描述概況

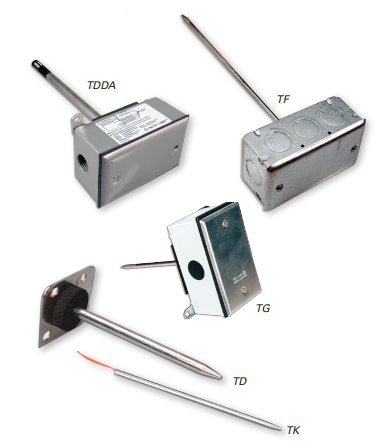

'風管安裝溫度傳感器預校準和安置在堅固的不銹鋼探頭。該設備易于安裝，耐用，和高度準確
規格
| 接線 | 22 AWG; 2 線: RTD 熱敏電阻，4-20mA; 3 線:電壓輸出模型 |
溫度變送器選項
| 輸入功率 | 4-20mA 模型: 回路供電 12-30VDC 僅，30毫安 |
| 最大;0-5/0-10 V 型號: 12-30VDC/24VAC，15毫安 max | |
| 臨時輸出 | TF，TG，TDDA: 2 線，回路供電 4-20mA |
| 僅 TDDA: 3 線，0-5 V/0-10VDC | |
| 傳感器類型 | TDDA: 固態集成電路TF，TG: 熱敏電阻/RTD |
| 發射機 | TDDA: ± 0.5 °C (±.9 ° f) 典型 * * |
| 精度 | TF/TG: ±.1 °C * |
| 范圍 | TDDA: 可選 0 ° 至 50 °C (32 ° 至 122 ° f) 或-40 ° 至50 °C (-40 ° 至 122 ° f) |
| TF/TG:-25 ° 至 105 °C (可用范圍; 型號指定精確范圍) |
LINITEMP 選項
| 輸入功率 | 5 至 30VDC |
| 輸出 | 10毫伏/°C |
| 操作溫度 | -25 ° 至 105 ° c (-13 ° 至 221 ° f) |
| 校準誤差 | 1.5 °C (2.7 ° f) 典型; 2.5 °C (4.5 ° f) 最大在 25 °C (77 ° f) * * |
| 臨時錯誤 | 1.8 °C (3.24 ° f) 典型; 3.0 °C (5.4 ° f) 最大超過 0 ° |
| 70 °C (32 ° 至 158 ° f) 范圍 | |
| 2.0 °C (3.6 ° f) 典型，3.5 °C (6.3 ° f) 最大超過-25 ° 至 | |
| 105 °C (-13 ° 至 221 ° f) 范圍 |
標準 RTD 和熱敏電阻值
| °C | F | 100 歐姆 | 1000 歐姆 | 1000 歐姆 | 2.2 k | 3 k | 10 k 型 2 | 10 k 型 3 | 10 k Dale | 10k 3A221 | 10 k “G” 我們 | 20 k NTC | 20 k “D” | 100 k | 10 k 型 2 | 10 k 型 3 |
| -50 | -58 | 80.306 | 803.06 | 740.46 | 154,464 | 205,800 | 692,700 | 454,910 | 672,300 | - | 441,200 | 1,267,600 | - | - | 692,700 | 454,910 |
| -40 | -40 | 84.271 | 842.71 | 773.99 | 77,081 | 102,690 | 344,700 | 245,089 | 337,200 | 333,562 | 239,700 | 643,800 | 803,200 | 3,366,000 | 344,700 | 245,089 |
| -30 | -22 | 88.222 | 882.22 | 806.02 | 40,330 | 53,730 | 180,100 | 137,307 | 177,200 | 176,081 | 135,300 | 342,000 | 412,800 | 1,770,000 | 180,100 | 137,307 |
| -20 | -4 | 92.16 | 921.6 | 841 | 22,032 | 29,346 | 98,320 | 79,729 | 97,130 | 96,807 | 78,910 | 189,080 | 220,600 | 971,200 | 98,320 | 79,729 |
| -10 | 14 | 96.086 | 960.86 | 877.46 | 12,519 | 16,674 | 55,790 | 47,843 | 55,340 | 55,252 | 47,540 | 108,380 | 122,400 | 553,400 | 55,790 | 47,843 |
| 0 | 32 | 100 | 1,000.00 | 913.66 | 7,373 | 9,822 | 32,770 | 29,588 | 32,660 | 32,639 | 29,490 | 64,160 | 70,200 | 326,600 | 32,770 | 29,588 |
| 10 | 32 | 103.903 | 1,039.03 | 952.25 | 4,487 | 5,976 | 19,930 | 18,813 | 19,900 | 19,901 | 18,780 | 39,440 | 41,600 | 199,000 | 19,930 | 18,813 |
| 20 | 68 | 107.794 | 1,077.94 | 991.82 | 2,814 | 3,750 | 12,500 | 12,272 | 12,490 | 12,493 | 12,260 | 24,920 | 25,340 | 124,900 | 12,500 | 12,272 |
| 25 | 77 | 109.735 | 1,097.35 | 1,013.50 | 2,252 | 3,000 | 10,000 | 10,000 | 10,000 | 10,000 | 10,000 | 20,000 | 20,000 | 100,000 | 10,000 | 10,000 |
| 30 | 86 | 111.673 | 1,116.73 | 1,035.18 | 1,814 | 2,417 | 8,055 | 8,195 | 8,056 | 8,055 | 8,194 | 16,144 | 15,884 | 80,580 | 8,055 | 8,195 |
| 40 | 104 | 115.541 | 1,155.41 | 1,077.68 | 1,199 | 1,598 | 5,323 | 5,593 | 5,326 | 5,324 | 5,592 | 10,696 | 10,210 | 53,260 | 5,323 | 5,593 |
| 50 | 122 | 119.397 | 1,193.97 | 1,120.52 | 811.5 | 1,081 | 3,599 | 3,894 | 3,602 | 3,600 | 3,893 | 7,234 | 6,718 | 36,020 | 3,599 | 3,894 |
| 60 | 140 | 123.242 | 1,232.42 | 1,166.13 | 561 | 747 | 2,486 | 2,763 | 2,489 | 2,486 | 2,760 | 4,992 | 4,518 | 24,880 | 2,486 | 2,763 |
| 70 | 158 | 127.075 | 1,270.75 | 1,210.75 | 395.5 | 527 | 1,753 | 1,994 | 1,753 | 1,751 | 1,990 | 3,512 | 3,100 | 17,510 | 1,753 | 1,994 |
| 80 | 176 | 130.897 | 1,308.97 | 1,254.55 | 284 | 378 | 1,258 | 1,462 | 1,258 | 1,255 | 1,458 | 2,516 | 2,168 | 12,560 | 1,258 | 1,462 |
| 90 | 194 | 134.707 | 1,347.07 | 1,301.17 | 207.4 | - | 919 | 1,088 | 917 | 915 | 1,084 | 1,833 | 1,542 | 9,164 | 919 | 1,088 |
| 100 | 212 | 138.506 | 1,385.06 | 1,348.38 | 153.8 | - | 682 | 821 | 679 | 678 | 816.8 | 1,356 | 1,134 | 6,792 | 682 | 821 |
| 110 | 230 | 142.293 | 1,422.93 | 1,397.13 | 115.8 | - | 513 | 628 | 511 | 509 | 623.6 | 1,016 | 816 | 5,108 | 513 | 628 |
| 120 | 248 | 146.068 | 1,460.68 | 1,447.44 | 88.3 | - | 392 | 486 | 389 | 388 | 481.8 | 770 | 606 | 3,894 | 392 | 486 |
| 130 | 266 | 149.832 | 1,498.32 | 1,496.28 | 68.3 | - | 303 | 380 | 301 | 299 | 376.4 | 591 | 456 | 3,006 | 303 | 380 |
| 傳感器代碼 | B | C | 我 | E | F | D | H | J | S | R | M | 你 | T | W | Y |
